Description

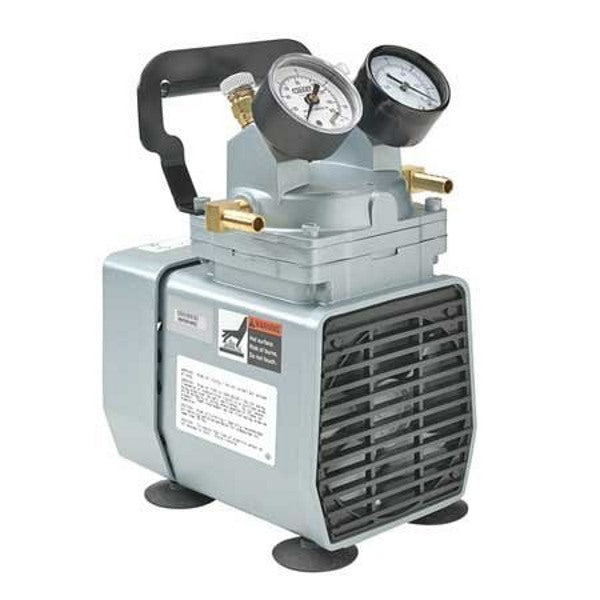

A good vacuum pump is critical to the vacuum bagging process. Pumps are designated by their vacuum pressure potential, their displacement in cubic feet per minute (CFM) and the horsepower required to drive the pump. This powerful little vacuum pump delivers uniform pressure at a great price, reducing voids and producing thinner, more consistent glue lines.
Features
- Pressure control regulators
- Low-maintenance, oil-less operation means NEVER having to lubricate
- Pump can be installed in any orientation
- Operates quietly on padded rubber feet
- Cooler air output and low power consumption
- Rugged construction for long service life
- Lightweight, compact, and portable, with convenient carrying handle
What’s Included
- Muffler AH190A for vacuum
- Capacitor AF873A unattached (DB and DD motors)
- Capacitor AF485 unattached (FB motor)
- Capacitor AF876 unattached (FD motor) Lab Models
- Gauges – Vacuum AE136, Pressure AA806
- Hose barbs – AG613
- Regulators – Vacuum AA550C-V, Pressure AF887
- Mounted on/off switch
- Cord and hospital-grade plug
Specifications
- Motor: 115-60-1
- Motor type: Shaded pole
- RPM 60 cycle: 1575
- HP: 1/8
- Net weight: 16 lbs.
- Max vacuum: 25.5" Hg
- Free-air capacity: 1.1 cfm (31.2 L/min)
- Port size: ¼" NPT(F), 3/8" hose barb on gauges
- Max temperature: 100°F (38° C)
- Motor type: Permanent split capacitor
- Power: 115V AC, 60 Hz
Gast Vacuum Bagging Pump User Guide
